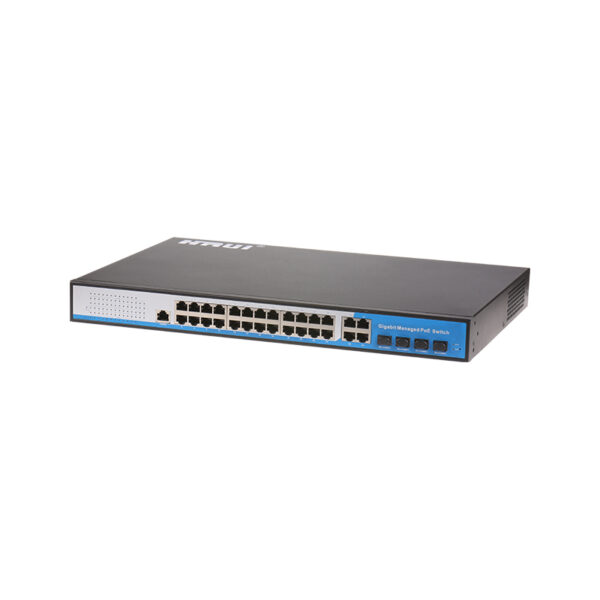

سوئیچ مدیریتی PoE گیگ HRUI HR-AFGM-2444S-400
سوئیچ شبکه PoE مدیریتی دارای ۲۴ پورت و ۴پورت آپلینک اترنت گیگ و ۴پورت SFP گیگ( Combo)
دارای پهنای باند ۵۶Gbps
SFP
Extend
L2 Management
| Specifications | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | ۲۴* ۱۰/۱۰۰/۱۰۰۰Mbps PoE Port |
| ۴* ۱۰۰۰M RJ45 Port (Combo) | |
| ۴*۱۰۰۰M SFP Port | |
| ۱ * RJ45 Console Port | |
| Performance | |
| Switching Capacity | ۵۶Gbps |
| Throughput | ۴۱.۶۶Mpps |
| Packet Buffer | ۴Mb |
| Flash Memory | ۱۶MB |
| DDR SDRAM | ۱۲۸MB |
| MAC Address | ۸K |
| Jumbo Frame | ۹.۶Kbytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network protocol | IEEE 802.3：Ethernet MAC Protocol |
| IEEE 802.3i：۱۰BASE-T Ethernet | |
| IEEE 802.3u：۱۰۰BASE-TX Fast Ethernet | |
| IEEE 802.3ab：۱۰۰۰BASE-T Gigabit Ethernet | |
| IEEE 802.3z：۱۰۰۰BASE-X Gigabit Ethernet (optical fiber) | |
| IEEE 802.3az：Energy Efficient Ethernet | |
| IEEE 802.3ad：Standard method for performing link aggregation | |
| IEEE 802.3x：Flow control | |
| IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) | |
| IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) | |
| IEEE 802.1q：VLAN Bridge Operation | |
| IEEE 802.1x：Client/Server Access Control and Authentication Protocol | |
| IEEE 802.1d：STP | |
| IEEE 802.1s：MSTP | |
| IEEE 802.1w：RSTP | |
| PoE Protocol | IEEE802.3af (۱۵.۴W) |
| IEEE802.3at (۳۰W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | ۱۰Base-T : Cat3、۴、۵ or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| ۱۰۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| Multi-mode Fiber: 50/125、۶۲.۵/۱۲۵、۱۰۰/۱۴۰um | |
| Single-mode Fiber: 8/125、۸.۷/۱۲۵、۹/۱۲۵、۱۰/۱۲۵um | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature：-۲۰~۵۰°C |
| Storage Temperature：-۴۰~۸۵°C | |
| Working Humidity ：۱۰%~۹۰%，non-condensing | |
| Storage Temperature：۵%~۹۰%，non-condensing | |
| Working Height：Maximum10,000 feet | |
| Storage heigh：Maximum 10,000 feet | |
| Indication | |
| LED Indicators | PWR(power supply),SYS(System),1-24 PoE&ACT (PoE), 1-24 Link&ACT(Link&Act), 25-28 Link(Link), ۲۵-۲۸ Act (Act) |
| DIP Switch | Reset |
| Mechanical | |
| Structure Size | Product Dimension (L*W*H): 440* 280*44mm |
| Package Dimension (L*W*H): 500*365*85mm | |
| N.W：۳.۹kg | |
| G.W：۴.۶kg | |
| Packing Info | Carton MEAS：۶۰۰*۴۹۵*۴۳۵mm |
| Packing Qty：۵ units | |
| Packing Weight：۲۴KG | |
| Power Voltage | Input Voltage ：AC 100-240 V |
| Power supply：۵۲V7.69A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable) |
| Software function | |
| Port Management | Enable/Disable Port |
| Speed、Duplex、MTU Setting | |
| Flow-control | |
| Port Information Check | |
| Port Mirroring | Supports both side-way port mirroring |
| Port Speed Limit | Supports port-based input / output bandwidth management |
| Port Isolation | Support the downlink port isolation, and can communicate with the uplink port |
| Storm Suppression | Supports unknown unicast, multicast, unknown multicast, |
| broadcast type storm suppression | |
| Storm suppression based on bandwidth regulation and storm filtering | |
| Link Aggregation | Support static manual aggregation |
| Support LACP dynamic aggregation | |
| VLAN | Access |
| Trunk | |
| Hybrid | |
| Support port, protocol, MAC-based VLAN partitioning | |
| Support GVRP dynamic VLAN registration | |
| Voice VLAN | |
| MAC | Support static addition, deletion |
| MAC address learning limit | |
| Support dynamic aging time setting | |
| Spanning tree | Support STP spanning tree protocol |
| Supports RSTP Rapid Spanning Tree Protocol | |
| Supports MSTP Rapid Spanning Tree Protocol | |
| Multicast | Support static addition, deletion |
| IGMP-snooping | |
| Support MLD-Snooping | |
| Support v1/2/3 dynamic multicast monitor | |
| DDM | Support SFP/SFP+DDM |
| Extended Function | |
| ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
| Qos | Based on 802.1p (COS) classification |
| Based on DSCP classification | |
| Classification based on source IP, destination IP, and port number | |
| Support SP, WRR scheduling strategy | |
| Support flow rate limit CAR | |
| LLDP | Support LLDP link discovery protocol |
| User settings | Add/delete users |
| Log | User login, operation, status, events |
| Anti-attack | DOS defense |
| Support CPU protection and limits the rate of sending cpu packets | |
| ARP binding (IP, MAC, PORT binding) | |
| Certification | Support 802.1x port authentication |
| Support AAA certification | |
| Network diagnosis | Support ping、telnet、trace |
| System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. |
| Management function | |
| CLI | Support serial port command line management |
| SSH | Support SSHv1/2 remote management |
| TELNET | Support telnet remote management |
| WEB | Support Layer 2 settings, Layer 2 and Layer 3 monitor |
| SNMP | SNMP V1/V2/V3 |
| Support trap：ColdStart、WarmStart、LinkDown、LinkUp | |
| RMON | Support RMON v1 |
| POE | Support PoE power supply |
| Other functions | Support DHCP Snooping、Option82、DHCP Server |
| Support dynamic ARP detection | |
| Support TACACS+ certification | |
| Support DNS certification | |
| Support port security settings | |
| Support MVR protocol | |
| Support cable detection VCT function | |
| Support UDLD protocol | |
