توضیحات

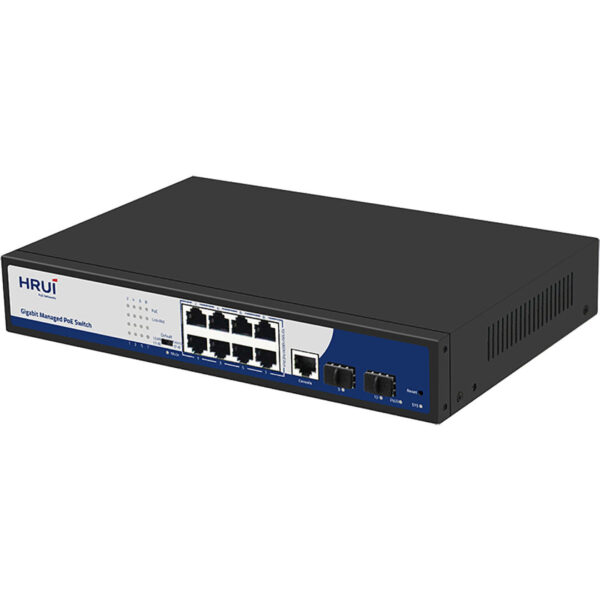

سوئیچ شبکه PoE مدیریتی دارای ۸ پورت و ۲ پورت آپلینک SFP گیگ دارای پهنای باند ۲۰Gbps
SFP
Extend
L2 Management
Rack mount
| Specifications | |
| I/O Interface | |
| Power | AC 100-240V/50-60Hz |
| Ethernet | 8 * 10/100/1000Mbps PoE Port2* 1000Mbps SFP Port
1 * RJ45 Console Port |
| Performance | |
| Bandwidth | 20Gbps |
| Packet Forwarding rate | 14.88Mpps |
| Packet Buffer Memory | 4Mbit |
| Flash Memory | 16MByte |
| DDR SDRAM | 128MByte |
| MAC Address | 8K |
| Jumbo frame | 9.6Kbytes |
| VLANs | 4096 |
| MTBF | 100000 hour |
| Standard | |
| Network protocol | IEEE 802.3：Ethernet MAC ProtocolIEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
| PoE protocol | IEEE802.3af （15.4W）IEEE802.3at （30W） |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)、
EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T: Cat3、4、5 or above UTP(≤100 M)100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M) |
| Fiber Medium | Multi-mode Fiber: 50/125、62.5/125、100/140umSingle-mode Fiber: 8/125、8.7/125、9/125、10/125um |
| Certification | |
| Safety Certificate | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature：-10~50°CStorage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| Physical specifications | |
| Structure Size | Product Dimensions: 268*181*44mmPackage Dimensions:312*262*84mm
Product N.W: 1.08KG Product G.W: 1.62KG |
| Packing Info | Carton Dimensions: 540*435*332mmPacking Qantity: 10pcs
Packing weight: 17.2KG |
| Power Voltage | Input Voltage : AC 100-240 V/50-60HzPower Supply：52V2.3A |
| power | Product power: ≤ 10WPOE power: ≤ 110W |
| Package List | Ethernet switch1 Set, Instruction manual 1 PCS, Certificate1 PCS, Power cord 1PCSSerial cable 1PCS, Brackets 1 pair |
| function&Indication | |
| LED Indicators | PWR，SYS，PoE/ACT、Link/ACT |
| PWR（Power Indicator） | Lighting：PoweredUn-Light：No Power |
| SYS（System Indicator） | Flashing: System Start-upLighting: System Running |
| PoE（PoE Indicator） | Lighting：PoE onUn-Light：PoE off |
| Link/ACT（Link &Data Indicator） | Lighting: Link connectionFlashing: Data transmission
Un-Light: Link disconnect |
| Reset | Short press restart, long press 5 seconds to restore factory Settings |
| L3 Function | |
| IPv4 | IPv4 VLAN Interface |
| IPv4 Static Routes | |
| ARP | |
| IPv6 | IPv6 VLAN Interface |
| IPv6 Static Routes | |
| IPv6 ND | |
| L2 Function | |
| Port | Port Switch |
| Port Description | |
| Port Speed | |
| Port Duplex | |
| Port Flow Control | |
| Jumbo, Up to 10K | |
| EEE | |
| Fiber Module(DDM) | |
| Link Aggregation | Supports load balance policy;Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| Supports LACP | |
| Up to 8 groups | |
| Storm Control | Boardcast |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Up to 4 session groups | |
| Port Security | MAC Address Constraints |
| Port Security MAC Address | |
| Protect/Restrict/Shutdown | |
| Port Isolation | |
| Port Rate-limit | |
| Loopback Detection | |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel （Q-in-Q Tunnel） | |
| Congurable VID from 1 – 4094;Max. 256 static VLAN groups | |
| Voice VLAN | |
| MAC VLAN | |
| Surveillance VLAN | |
| Protocol VLAN | |
| GVRP | |
| MAC Address | Dynamic Address |
| Static Address | |
| Filtering Address | |
| Spnning Tree Protocol | STP/RSTP/MSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| LLDP | LLDP |
| LLDP MED | |
| Multicast | IGMP Snnoping |
| IGMP V1/V2/V3 | |
| Router Port | |
| Static IGMP group address | |
| IGMP groups filtering | |
| Querier | |
| MLD Snooping | |
| MVR | |
| QoS | Traffic classification based, Strict priority and WRR |
| Port Priority | |
| 802.1P Priority | |
| IP TOS Priority | |
| IP DSCP Priority | |
| Supports up to 8 queues per port | |
| Priority Remarking | |
| PoE | |
| PoE Configuration | PoE Temperature |
| PoE Type/Level/Power/Voltage/Current | |
| PoE Switch | |
| PoE Watchdog | |
| PoE power AF/AT adaptation | |
| PoE Schedule | |
| PoE Port Timer Reboot | |
| Services | |
| DHCP | DHCP Server |
| IP Pool | |
| Static Binding | |
| DHCP Relay | |
| Access Protocol | HTTP |
| HTTPS | |
| Telnet | |
| SSHv2 | |
| Manager ACL | |
| Session Timeout | |
| Password Retry Count | |
| Silent Time | |
| Security | |
| AAA | RADIUS |
| TACACS+ | |
| 802.1X | |
| Base on port/MAC/local/WEB | |
| DHCP Snooping | Global/VLAN |
| Option 82 | |
| Circuit ID | |
| IP Source Guard | |
| Dynamic ARP Inspection | |
| DoS | |
| ACL | MAC ACL |
| IPv4 ACL | |
| IPv6 ACL | |
| Diagnostics | |
| Syslog | Logging Message |
| Remote Server | |
| Ping | |
| Traceroute | |
| Copper Test | |
| UDLD | |
| Managemnet | |
| Manager Access | Console |
| HTTP/HTTPS | |
| Telnet | |
| SSH | |
| SNMP | |
| Manager IP | Static Address |
| DHCP Client | |
| Supports IPv4 and IPv6 address | |
| Manager VLAN | |
| DNS | |
| Time Synchronization | SNTP |
| Manual Time | |
| SNMP | V1/V2C/V3 |
| Community | |
| V3 User | |
| Group | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
| RFC 2863 Interface MIB | |
| LLDP | |
| Private MIB | |
| RMON | Statistics |
| History | |
| Event | |
| Alarm | |
| User | |
| Firmware | Firmware Upgarde |
| Configuration | Upload and download |
| Save | |
| Restart | |
| Factory Defaults | |
| Standards Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| FRC 3810 MLD v2 | |
