توضیحات

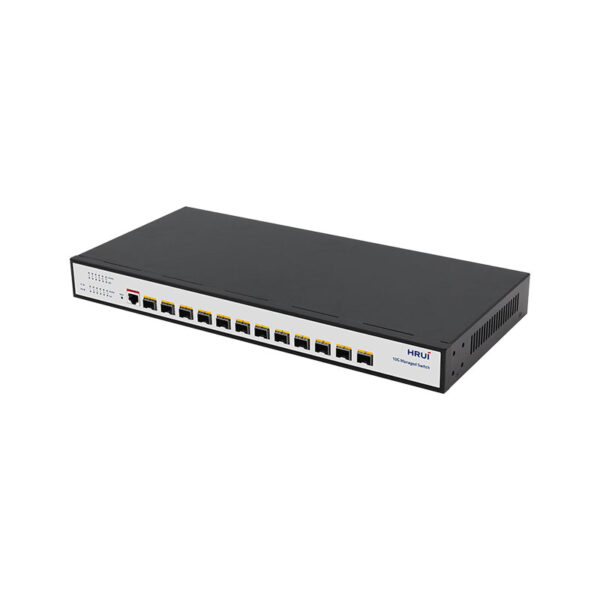

سوئیچ شبکه فیبرنوری مدیریتی دارای ۱۲ پورت G10 S دارای پهنای باند ۲۴۰Gbps
SFP 10G
L3 Management
Rack mount
Specification | |
I/O Interface | |
Power | AC100-240V 50/60Hz |
Ethernet | ۱۲* SFP+ Ports ۱* RJ45 Console Port |
Performance | |
Bandwidth | ۲۴۰Gbps |
Pack Forward Rate | ۱۷۸.۵۶Mpps |
DDR SDRAM | ۱۲۸ MB |
Flash Memory | ۱۶ MB |
Pack Cache | ۱۶Mbit |
MAC Address | ۳۲K |
Jumbo frame | ۱۲K |
VLANs | ۴۰۹۶ |
MTBF | ۱۰۰۰۰۰ Hours |
Standard | |
Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet optical fiber) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad (link aggregation) IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (virtual local area network) IEEE 802.1p (VLAN tags) IEEE 802.1X (User Authentication) |
Industry Standard | EMI: FCC 47 CFR Part 15 Subpart B (Class A) EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
Fiber Medium | Multimode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
Certification | |
Safety Certificate | CE, FCC, RoHS |
Environment Standard | |
Working Environment | Working Temperature: -10~50 °C Storage Temperature: -40~70 °C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
Function Indicator | |
PWR | On: Powered on Off: Powered off |
SYS | On: System normal, Flashing: System startup |
۱۰G (Link) | Lighting: 10G Link |
Link/ACT | On: Connecting; Flashing: Data Transmit; Off:Disconnect |
Physical Specification | |
Structure Size | Product Dimensions: 440*205*44 mm Package Dimensions: 500*290*85 mm Product N.W: 2.50 KG Product G.W: 3.12 KG |
Packing Info | Carton Dimensions：۵۲۰*۴۴۵*۳۰۰ mm Packing Quantity：۵ PCS Packing weight：۱۶.۶ KG |
Power Voltage | Voltage: AC100-240V, 50/60Hz Power supply: 12V8A |
Consumption | ＜۳۰W |
Packaging List | Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC Serial cable: 1 PC, Rack ear: 1 Pair |
