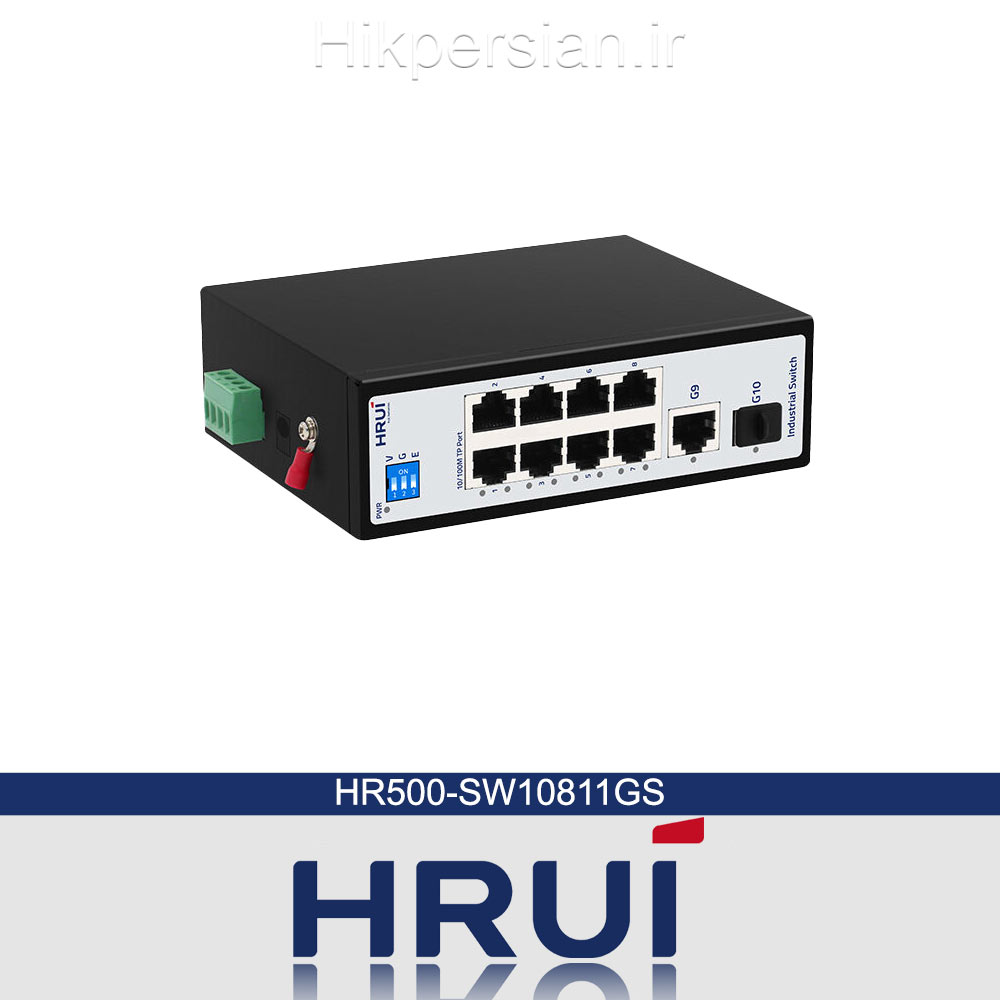

سوئیچ شبکه اترنت صنعتی HR500-SW10811GS
| Technical Parameter | |
| Input/Output interface | |
| Power | DC 12～55V |
| Ethernet | ۸ 100M RJ45 Port1 Gigabit Uplink Ports ۱ Gigabit SFP Ports |
| Performance | |
| Bandwitdth | ۵.6Gbps |
| Package Forwarding Rate | ۴.166Mpps |
| MAC Address | 1K |
| Jumbo frame | ۹.6Kbytes |
| Forwarding mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ 小时 |
| Standard | |
| Network Protocols | IEEE802.3IEEE802.3u IEEE802.3z |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Network Media | 10BASE-T: Cat5 or more UTP(≤۱۰۰ m)100BASE-TX: Cat5 or more UTP(≤۱۰۰ m) 1000BASE-TX: Cat5 or more UTP(≤۱۰۰ m) |
| Fiber Media | Multi-mode：850nm，1310nm. transmission distance：550m/2KmSingle-mode：1310nm，1550nm. transmission distance：۲۰/۴۰/۶۰/۸۰/۱۰۰/120Km |
| Certification | |
| Safety Certificate | CE、FCC、RoHS |
| Environmental standards | |
| Working Environment | Operating Temperature: -40～۷۵℃Storage Temperature: -40～۸۵℃ Humidity: 5%~95 %( non-condensing) |
| Physical Specifications | |
| Specification Size | Product Size：۱۳۸×۱۰۸×۴۴ mmPacking Szie：۲۴۵×۱۹۰×60mm Product net weight: 0.567KG Product gross weight: 0.701 KG (excluding power supply) |
| Packing Info | Outer box size: 520×۳۲۰×400mmPacking quantity: 20 PCS Packing weight: 15.02KG |
| Voltage | Voltage input: DC12～55VPower wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) / DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
| Packing List | ۱. Industrial switch: 12. Instructions: 1PCS ۳. Qualification certificate, warranty card 1PCS ۴. Mounting ears: 1 pair |
| Function indication | |
| LED Indicator | PWR, 1-8 Green, G10 |
| PWR | Lighting：PoweredUn-Light：No Power |
| ۱-۸ Green | Blinking slowly: 10/100 links are normalOff: link failure Flash: link data transfer |
| G10 | Steady on: The optical fiber connection is normalNo light: no fiber connection Flash: link data transfer |
| DIP Funtion | V,G,E（Open Up, Close Down） |
| V | V：VLAN mode, ports 1-8 are isolated, and both communicate with ports 9 and 10 |
| G | G：Normal mode |
| E | E：In extension mode, ports 1-8 are reduced to 10M and can be extended to 250 meters |
