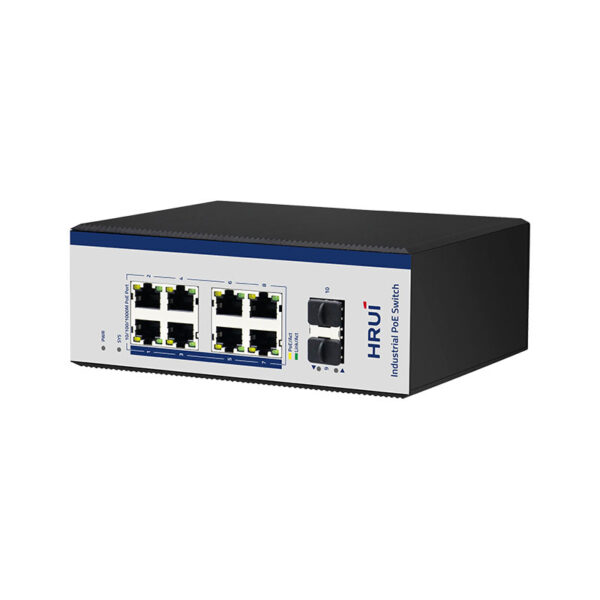

سوئیچ PoE صنعتی مدیریتی گیگ HRUI HR600-AFGM-82S
سوئیچ شبکه PoE مدیریتی و صنعتی دارای ۸ پورت گیگ و ۲ پورت SFP گیگ
دارای پهنای باند ۲۴Gbps
Din-Rail
۴۰- تا ۸۵+ درجه سانتی گراد
L2 Management
| Specification | ||||
| Product Name | ۱۰ Ports Gigabit Managed Industrial PoE Switch | |||
| Product Model | HR600-AFGM-82S | |||
| Port Definition | ۸ Gigabit PoE Ports + 2 Gigabit SFP Port + ۱ Console port | |||
| Network Protocols | IEEE802.3 | |||
| IEEE802.3u | ||||
| IEEE802.3z | ||||
| IEEE802.3ab | ||||
| IEEE802.3x | ||||
| IEEE802.1d | ||||
| IEEE802.1w | ||||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | |||
| Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | ||||
| PoE Compatibility: IEEE 802.3af/at adaptive | ||||
| PoE Power Output: DC 48-55V | ||||
| PoE Power Pin: 1/2- ; 3/6+ | ||||
| Network Media | ۱۰BASE-T: Cat3, 4, 5 UTP(≤۱۰۰ M) | |||
| ۱۰۰BASE-TX: Cat5 or above UTP(≤۱۰۰ M) | ||||
| ۱۰۰۰BASE-TX: Cat5 or above UTP(≤۱۰۰ M) | ||||
| Fiber Media | Multi-mode: 850nm, 1310nm Transmission Distance: ۵۵۰m/2Km | |||
| Single-mode: 1310nm, 1550nm Transmission Distance: ۲۰/۴۰/۶۰/۸۰/۱۰۰/۱۲۰Km | ||||
| LED Indicator | PWR | Lighting: Powered | ||
| Un-Light: No Power | ||||
| SYS | Lighting: System is operating normally | |||
| Un-Light: System is not running | ||||
| Yellow light | Lighting: PoE Powered | |||
| Un-Light: No PoE Powered | ||||
| Green light | Slow Flashing: 10/100/1000 Link normally | |||
| Un-Light: Link disconnect | ||||
| Flashing: Link data transmission | ||||
| G9-G10 | Lighting: Fiber Connection is Normal | |||
| Un-Light: Disconnect | ||||
| Flashing: Link data transmission | ||||
| Power Supply | Input Voltage: DC 48～۵۵V | |||
| Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-) | ||||
| Physical structure | Protect grade: IP40 | |||
| Installation: DIN Rail | ||||
| Product weight: ۰.۸ KG Package weight: ۱.۱ KG（Without power） | ||||
| Product Dimensions (L×W×H): ۱۶۵mm×۱۳۰mm×۶۵mm | ||||
| Package Dimensions (L×W×H): ۲۴۲mm×۲۰۷mm×۸۶mm | ||||
| Standard packing (L×W×H): ۴۴۵mm×۴۴۵mm×۵۱۰mm | ||||
| Standard packing quantity: ۲۰(PCS) | ||||
| Working Environment | Operating temperature: -40～۸۵℃ | |||
| Storage temperature: -40～۸۵℃ | ||||
| Humidity: 5%~95 % ( No condensation) | ||||
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A | |||
| EMS: EN61000-4-2 (ESD) | ||||
| EN61000-4-4 (EFT) | ||||
| EN61000-4-5 (Surge) | ||||
| Certification | CE , FCC , ROHS | |||
| MTBF | ۱۰۰, ۰۰۰ hours | |||
| Packing list | ۱. Industrial grade switch: 1 Set | |||
| ۲. Instruction manual: 1 PCS | ||||
| ۳. Certificate, warranty card: 1 PCS | ||||
| ۴. Serial cable: 1PCS | ||||
| ۵. Operation manual CD: 1 PCS | ||||
| Warranty | ۵ years | |||
| Hardware Parameters | ||||
| Bandwidth | ۲۰Gbps | |||
| Packet Forwarding Rate | ۱۴.۸۸Mpps | |||
| Packet Buffer Memory | ۴M | |||
| RAM | ۱۲۸MB | |||
| Flash | ۱۶MB | |||
| VLANs | ۴۰۹۶ | |||
| MAC | ۸K | |||
| Jumbo frame | ۹.۶Kbytes | |||
| Forwarding Mode | Store-And-Forward | |||
| Software Function | ||||
| Menu Items | Submenus | Secondary Submenus | Triple Submenus | |
| Information & Status | System Information | |||
| IP Status | ||||
| Syslog | ||||
| Detailed Syslog | ||||
| MAC Table | ||||
| VLANs | Membership | |||
| Ports | ||||
| Ports | Traffic Overview | |||
| Detailed Statistics | ||||
| LACP | System Status | |||
| Port Status | ||||
| Port Statistics | ||||
| Green Ethernet | ||||
| LLDP | Nei***ors | |||
| Port Statistics | ||||
| Loop Protection | ||||
| Spanning Tree | Bridge Status | |||
| Port Status | ||||
| Port Statistics | ||||
| IGMP Snooping | Status | |||
| Groups Information | ||||
| IPv4 SFM Information | ||||
| MLD Snooping | Status | |||
| Groups Information | ||||
| IPv6 SFM Information | ||||
| DHCP | Server | Statistics | ||
| Binding | ||||
| Declined IP | ||||
| Snooping Table | ||||
| Relay Statistics | ||||
| Detailed Statistics | ||||
| Security | Port Security | Switch | ||
| Port | ||||
| Access Management Statistics | ||||
| ۸۰۲.۱X | Switch | |||
| Port | ||||
| ACL Status | ||||
| AAA | RADIUS Overview | |||
| RADIUS Details | ||||
| QoS | QoS Statistics | |||
| QCL Status | ||||
| Network Admin | IP Config | |||
| IP Status | ||||
| DHCPServer | Mode | |||
| Excluded IP | ||||
| Pool | ||||
| NTP | ||||
| Timezone | ||||
| SNMP | System | |||
| Trap | ||||
| Communities | ||||
| Users | ||||
| Groups | ||||
| Views | ||||
| Access | ||||
| Syslog | ||||
| Port Configure | Ports | |||
| Aggregation | Static | |||
| LACP | ||||
| Mirroring | ||||
| Green Ethernet | ||||
| DDM | DDM Configuration | |||
| DDM Overview | ||||
| DDM Detailed | ||||
| PoE | PoE Setting | |||
| PoE Status | ||||
| Advanced Configure | MAC Table | |||
| VLANs | ||||
| GVRP | Global config | |||
| Port config | ||||
| Port Isolation | Port Group | |||
| Port Isolation | ||||
| Loop Protection | ||||
| Spanning Tree | Bridge Setting | |||
| MSTI Mapping | ||||
| MSTI Priorities | ||||
| CIST Ports | ||||
| MSTI Ports | ||||
| IPMC Profile | Profile Table | |||
| Address Entry | ||||
| MEP | ||||
| ERPS | ||||
| IGMP Snooping | Basic Configuration | |||
| VLAN Configuration | ||||
| Port Filtering Profile | ||||
| IPV6 MLD Snooping | Basic Configuration | |||
| VLAN Configuration | ||||
| Port Filtering Profile | ||||
| LLDP | ||||
| Security Configure | Users | |||
| Privilege Levels | ||||
| SSH | ||||
| Port Security Limit | ||||
| Access Management | ||||
| ۸۰۲.۱X | ||||
| ACL | Ports | |||
| Rate Limiters | ||||
| Access Control List | ||||
| DHCP | Snooping Setting | |||
| Snooping Table | ||||
| Relay | ||||
| Relay Statistics | ||||
| Detailed Statistics | ||||
| IP&MAC Source Guard | Configuration | |||
| Static Table | ||||
| Dynamic Table | ||||
| ARP Inspection | Port Configuration | |||
| VLAN Configuration | ||||
| Static Table | ||||
| Dynamic Table | ||||
| AAA | RADIUS | |||
| TACACS+ | ||||
| QoS Configure | Port Classification | |||
| Port Policing | ||||
| Queue Policing | ||||
| Port Scheduler | ||||
| Port Shaping | ||||
| Port Tag Remarking | ||||
| Port DSCP | ||||
| DSCP-Based QoS | ||||
| DSCP Translation | ||||
| DSCP Classification | ||||
| QoS Control List | ||||
| Storm Policing | ||||
| Diagnostics | Ping | |||
| Cable Diagnostics | ||||
| CPU Load | ||||
| Maintenance | Restart Device | |||
| Factory Defaults | ||||
| Firmware Upgrade | ||||
| Firmware Select | ||||
| Configuration | Download | |||
| Upload | ||||
| Activate | ||||
| Delete | ||||
