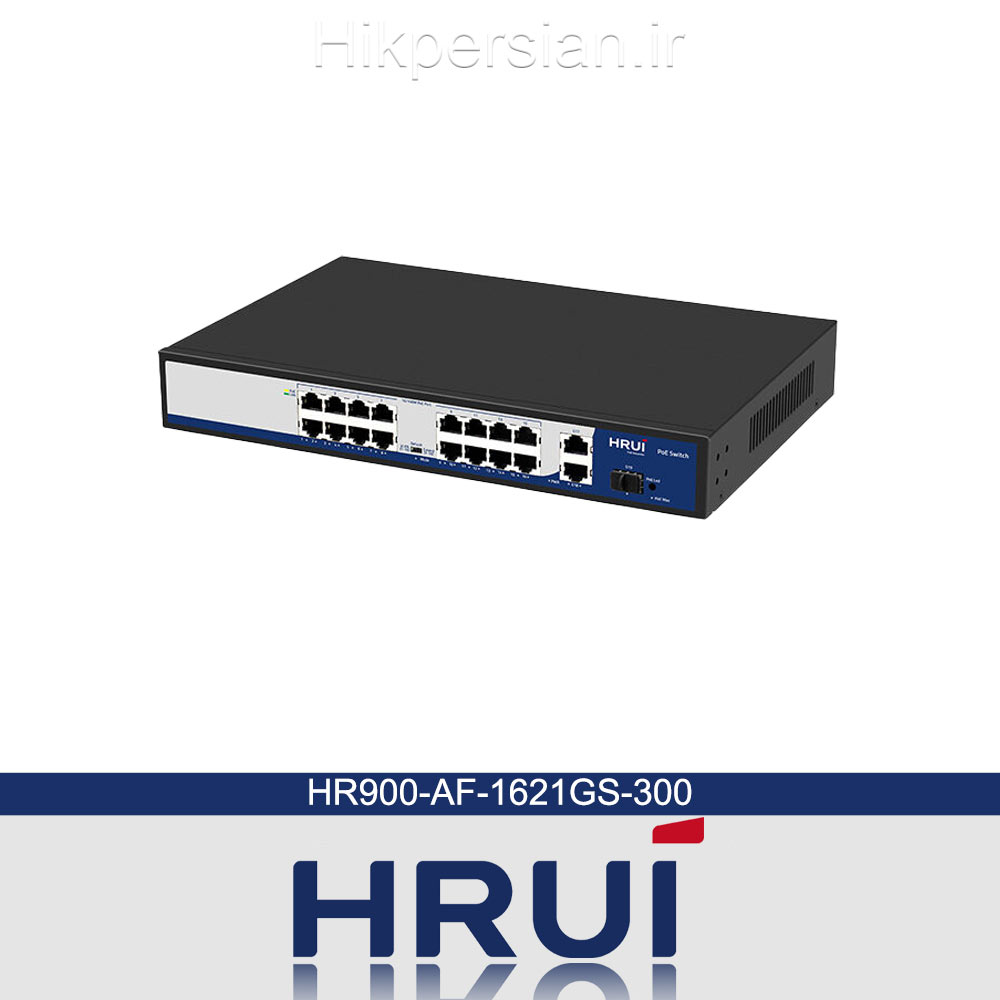

Specifications

I/O Interface

Power

AC INPUT （۱۰۰-۲۴۰ V）

Ethernet

۱۶* ۱۰/100M PoE Ports

۲* Gigabit Ethernet Uplink Ports

۱* Gigabit SFP Port

Chip Solution

RTL8367S+RTL8309N

Performance

Bandwidth

۹.2Gbps

Forwarding Rate

۶.84Mpps

Packet Buffer

3Mbit

MAC Address

2K

Transfer Mode

Store and forward

Standard

Network protocol

IEEE802.3（Ethernet）

IEEE802.3u（Fast Ethernet）

IEEE802.3ab（Gigabit Ethernet）

IEEE802.3x（Flow control）

IEEE 802.3z （Gigabit Ethernet fiber optic standard）

PoE Protocol

IEEE802.3af （۱۵.4W）

IEEE802.3at （30W）

POE port output voltage: DC 44-57V

POE power supply core: 1/2+; 3/6-

Industry Standard

EMS: EN61000-4-2 (ESD)

IEN61000-4-5 （Surge）

Network Medium

10BASE-T: Cat 3, 4, 5 UTP(≤۱۰۰ meter)

100BASE-TX: Cat5 or more UTP (≤۱۰۰ meter)

1000Base-TX : Cat5 or more UTP/STP(≤۱۰۰ meter)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140um

Single mode fiber : 8/125, 8.7/125, 9/125, 10/125um

Protection

Certificate

CE/FCC/ROHS

Environment standards

Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%，non-condensing

Physical Features

Dimension

Product Dimension: ۳۲۰*۲۰۷*45mm

Package Dimension: ۳۷۰*۲۹۰*85mm

N.W: ۱.61KG

G.W: ۲.14KG

Packing Info

Carton MEAS: ۴۴۵*۳۱۰*390mm

Packing Qty: ۵ set

Packing Weight: 11.7KG

Power Voltage

Input Voltage : AC 100-240 V 50-60Hz

Power supply：52V /5.76A

Power

Non POE board power: maximum 6W

POE power：maximum 270W

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair

Functional indication

Indicators

PWR（Power indication）

Mode（Dial indicator）

۱-19Green（Link&Data）

POE Max（Power display）

PWR

On：Equipment powered on

Off：Equipment power off

Mode

On：VLAN

Flashing：Extend

Off：Default

۱-19Green

On：Link connectivity

Flashing：Data transmission

Off：Link abnormality

۱-16Yellow（POE）

On：Powered on

Off：Powered off

POE Max（Green）

Off：Indicates that PoE power usage is less than 90%

Flashing: Indicates PoE power usage of 90% ≤ P ≤ ۹۵%

On：Indicates PoE power usage of 95%<P<100%

POE LED button

Dual color light selection: default green (link data), switch yellow light (POE)
