توضیحات

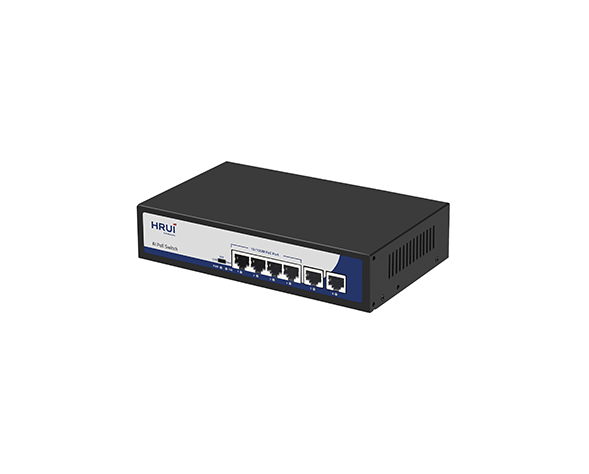

سوئیچ شبکه PoE دارای ۴ پورت و ۲ پورت آپلینک ۱۰۰/۱۰ دارای پهنای باند ۱,۲Gbps
Extend Rack mount
قالیت اتصال به رک شبکه
قابلیت WatchDog
این قابلیت در سیستم‌های نظارت تصویری در صورت قطع هریک از دوربین‌ها سیستم را ریست کرده تا دوربین دوباره متصل شود.
VLan
Lightning Protection
حفاظت در مقابل جریان الکتریکی شدید مثل رعد و برق
Product Structure ساختار محصول
| Specification | |
| I/O Interface | |
| Power | AC input (100-240 V) |
| Ethernet | ۴ Port 10/100M PoE |
| ۲ Port 10/100M Ethernet Uplink | |
| Performance | |
| Switching Capacity | ۱.۲Gbps |
| Throughput | ۰.۸۹۲۸Mpps |
| Packet Buffer | ۴۴۸K |
| MAC Address | ۱K |
| Jumbo Frame | ۲Kbytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | ۱۰Base-T: Cat3,4,5 or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX: Cat5 or above UTP(≤۱۰۰m) | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~95%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Mechanical | |
| Structure Size | Product Size: 200*118*44mm |
| Package Size: 245*190*60mm | |
| Product Net-Weight: 0.6kg | |
| Product Gross-Weight: 0.9kg | |
| Packing Info | MEAS: 505*320*400mm |
| Packing Qty: 20 unit | |
| Packing weight: 19 KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Output Voltage: 52V1.25A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
| Indication | |
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on |
| OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; The port AI mode is closed | |
| Extend: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on | |
| LED Indicators | PWR、SW、۱-۶ Link |
