توضیحات

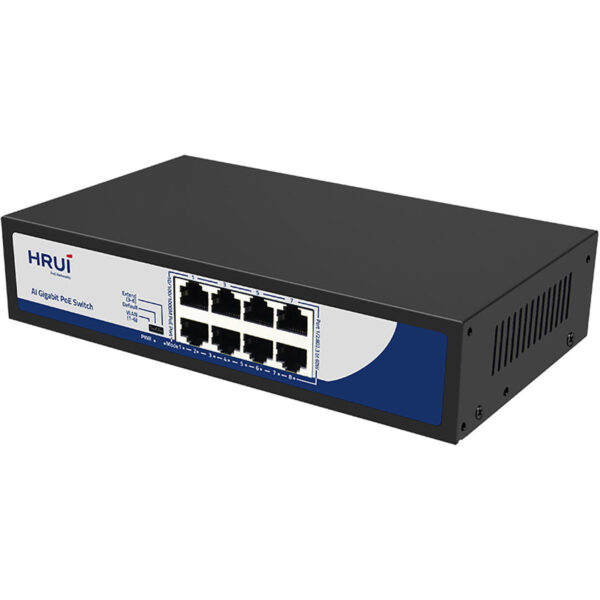

سوئیچ شبکه PoE-Hi دارای ۸ پورت گیگ
دارای پهنای باند ۱۶Gbps
Extend
Lightning Protection
Rack mount
WatchDog
۲Port PoE 60w
VLan
| Specifications | |
| I/O Interface | |
| Power | AC input (100-240 V) |
| Ethernet | ۸ Port 10/100/1000M PoE |
| Performance | |
| Switching Capacity | ۱۶Gbps |
| Throughput | ۱۱.۹Mpps |
| Packet Buffer | ۱Mb |
| MAC Address | ۲K |
| Jumbo Frame | ۹۲۱۶bytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| IEEE802.3bt (60W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD)、 | |
| EN61000-4-4 (EFT)、 | |
| IEN61000-4-5 (Surge) | |
| Network Medium | ۱۰Base-T : Cat3, 4, 5 or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| ۱۰۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~95%，non-condensing | |
| Working Height: Maximum 10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Mechanical | |
| Structure Size | Product Size: 200*118*44mm |
| Package Size: 245*190*60mm | |
| Product Net-Weight: 0.6kg | |
| Product Gross-Weight: 0.9kg | |
| Packing Info | MEAS: 505*320*400mm |
| Packing Qty: 20 unit | |
| Packing weight: 19 KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Output Voltage: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
| Indication | |
| DIP Switch | VLAN: Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable |
| Default: Normal mode, all port can communicate with each other, The port AI mode is closed | |
| Extend: Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s, AI enable | |
| LED Indicators | PWR、Mode、۱-۸ Link&ACT |
