Description

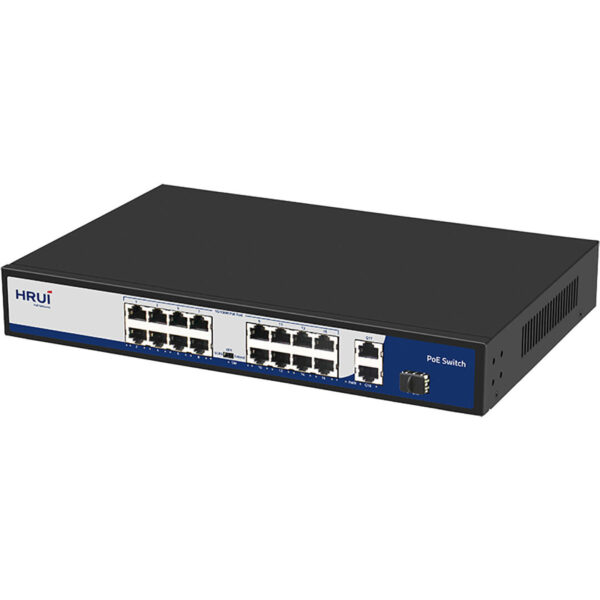

سوئیچ شبکه PoE دارای ۱۶ پورت ۱۰۰/۱۰ و ۲ پورت آپلینک
و ۱ پورت SFP گیگ
دارای پهنای باند Gbps ۹,۲
VLan
SFP
Extend
Rack mount
| Specification | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | ۱۶ Port 10/100M PoE |
| ۲ Port 1000M Ethernet Uplink | |
| ۱ port SFP 1000M Uplink | |
| Performance | |
| Switching Capacity | ۹.۲ Gbps |
| Throughput | ۶.۸۴۴Mpps |
| Packet Buffer | ۱.۵Mb |
| MAC Address | ۲K |
| Jumbo Frame | ۹۲۱۶bytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hours |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3z(1000Base-FX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT) | |
| Shock: IEC 60068-2-27 | |
| Free Fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| Network Medium | ۱۰Base-T: Cat3, 4, 5 or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| ۱۰۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| Protection | |
| Security Certificae | CE, FCC, RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity : 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum 10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Indication | |
| LED Indicators | PWR(power supply)，SW(DIP)，۱-۱۹ Green(Link&Data) |
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; | |
| Extend: Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M | |
| Mechanical | |
| Structure Size | Product Dimension (L*W*H): 319*207*45mm |
| Package Dimension (L*W*H): 370*270*85mm | |
| N.W: 1.8kg | |
| G.W: 2.3kg | |
| Packing Info | Carton MEAS: 440*285*390mm |
| Packing Qty: 5 units | |
| Packing Weight: 12.5KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Power supply: 52V3.8A/52V5.76A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
