توضیحات

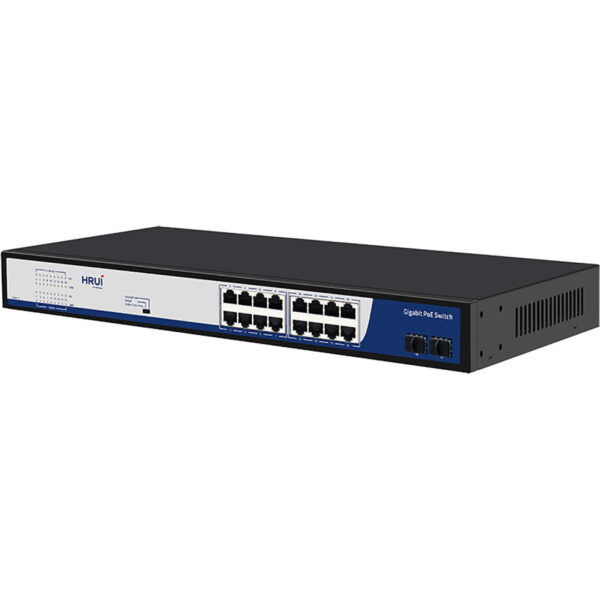

سوئیچ شبکه PoE دارای ۱۶ پورت و ۲ پورت SFP گیگ
دارای پهنای باند ۳۶Gbps
VLan
SFP
Extend
Rack mount
| Specification | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | ۱۶ *۱۰/۱۰۰/۱۰۰۰M PoE Port |
| ۲* Gigabit SFP Uplink Port | |
| Performance | |
| Switching Capacity | ۳۶Gbps |
| Throughput | ۲۶.۷۸۴Mpps |
| Packet Buffer | ۴Mb |
| MAC Address | ۸K |
| Jumbo Frame | ۹.۶Kbytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3z (1000Base-FX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | ۱۰Base-T: Cat3, 4, 5 or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| ۱۰۰۰Base-TX : Cat5 or above UTP(≤۱۰۰m) | |
| Optical Media | Multimode fiber: 50/125, 62.5/125, 100/140μm |
| Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm | |
| Protection | |
| Security Certificae | CE, FCC, RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum 10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Indication | |
| LED Indicators | PWR(power supply), 1-18 ACT(Link&Data), 1-18 1000M(Link) |
| PWR | Lighting: Powered |
| Un-Light: No Power | |
| ۱-۱۸ ACT（Link&Data） | Lighting: Connecting |
| Flashing: Data Transmit | |
| Un-Light: Disconnect | |
| ۱-۱۸ ۱۰۰۰M（Link） | Lighting: 1000M |
| Un-Light: 10/100M | |
| DIP Switch | VLAN, Default, Extend |
| VLAN | Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Default | Normal mode, all port can communicate with each other, the transmission distance is within 100 meters |
| Extend | Link extension mode, 9-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Mechanical | |
| Structure Size | Product Dimension (L*W*H): 440*204*44mm |
| Package Dimension (L*W*H): 500*290*85mm | |
| N.W: 2.6Kg | |
| G.W: 3.2kg | |
| Packing Info | Carton MEAS: 520*445*300mm |
| Packing Qty: 5 units | |
| Packing Weight: 17KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Power supply: 52V5.76A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
