توضیحات

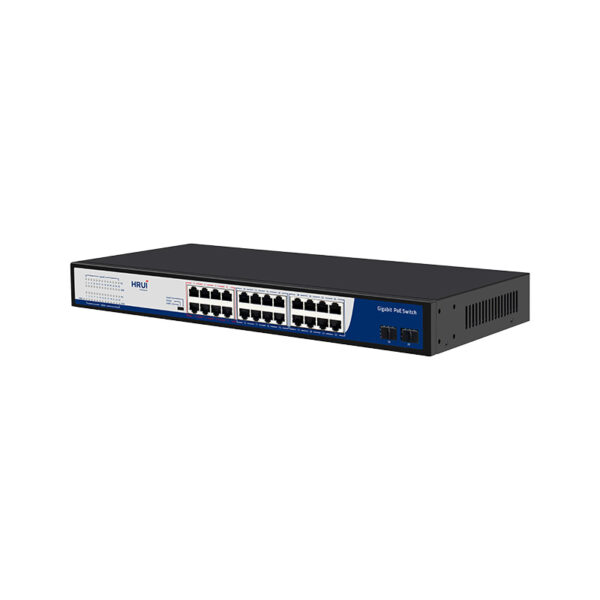

سوئیچ شبکه PoE دارای ۲۴ پورت و ۲ پورت SFP گیگ
دارای پهنای باند ۵۲Gbps
VLan
SFP
Extend
Rack mount
QoS
| Specification | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | ۲۴*۱۰/۱۰۰/۱۰۰۰M PoE Port |
| ۲*Gigabit SFP Port | |
| Performance | |
| Switching Capacity | ۵۲Gbps |
| Throughput | ۳۸.۷Mpps |
| Packet Buffer | ۴M |
| MAC Address | ۸K |
| Jumbo Frame | ۹Kbytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3z (1000Base-FX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | ۱۰Base-T: Cat3, 4, 5 or above UTP(≤۱۰۰m) |
| ۱۰۰Base-TX: Cat5 or above UTP(≤۱۰۰m) | |
| ۱۰۰۰Base-TX: Cat5 or aboveUTP(≤۱۰۰m) | |
| Optical Media | Multimode fiber: 50/125、۶۲.۵/۱۲۵、۱۰۰/۱۴۰um |
| Single mode fiber: 8/125、۸.۷/۱۲۵、۹/۱۲۵、۱۰/۱۲۵um | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum 10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
| Indication | |
| LED Indicators | PWR(power supply), ACT(Link&Data), 1000Mbps(1000M Link) |
| DIP Switch | VLAN: 1-24 port is isolated each other, but all can communicate with uplink port 25/26 |
| Default: All ports communicate freely | |
| Extend: 17-24 Port support 250 meters transmission on 10Mbps/s | |
| Mechanical | |
| Structure Size | Product Dimension (L*W*H): 440mm*280mm*44mm |
| Package Dimension (L*W*H): 500mm*365mm*85mm | |
| N.W: 3.2kg | |
| G.W: 3.8 kg | |
| Packing Info | Carton MEAS: 520*445*385mm |
| Packing Qty: 6 units | |
| Packing Weight: 24.2KG | |
| Power Voltage | Input Voltage: AC 100-240V, 50/60Hz |
| Power supply: 52V5.67A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair |
