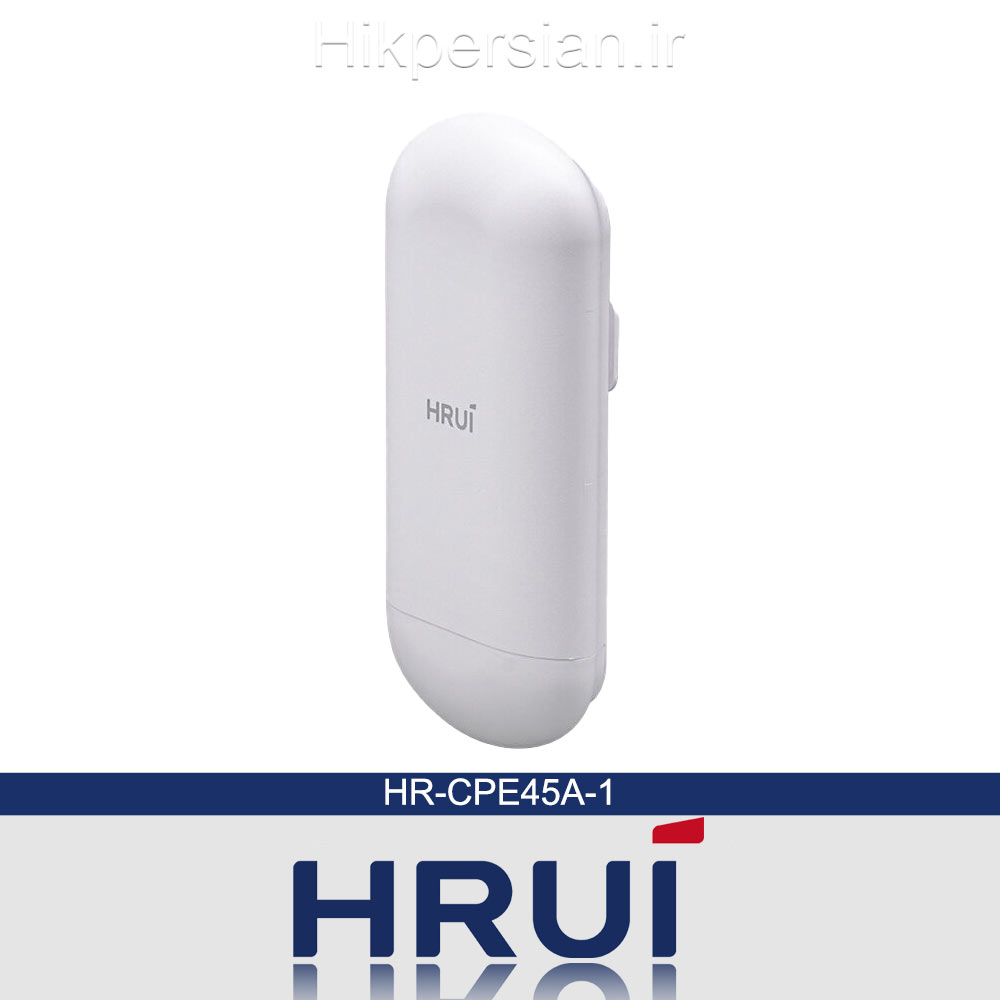

رادیو وایرلس HRUi مدل HR-CPE45A-1
| Hardware Features & Performance | |
| Model | HR-CPE45A-1 |
| Wireless Technology | ۸۰۲.11a/n/ac 450Mbps 1T1R technology |
| Interface | LAN ۱* ۱۰/100Mbps adaptive RJ45 port |
| Button | Reset to factory/digital composite button, short press to adjust digital tube value, long press for 5 seconds to restore factory settings |
| Indicator Light | PWR power indicator light, ETH RJ45 port status indicator lightSIG1/SIG2/SIG3/SIG4 signal strength indicator light, digital tube |
| Antenna | Built in dual polarized 8dBi directional plate antenna (horizontal lobe angle 65 °, vertical lobe angle 30 °) |
| Power supply | 24V/0.5A PoE remote power supply |
| Structure Information | Product Dimensions :180*90*40mmPackaging Dimensions :210*183*70mm Product Net Weight:0.15kg Product Gross Weight:0.65kg |
| Packing Information | Carton Dimensions :432*390.5*380mmPacking Quantity: 20pair Packing Weight: 14.06kg |
| Package Contents | Wireless Digital Bridge*1，24V PoE power adapter * 1, plastic clamp * 2,Ethernet cable * 1, manual (including warranty card)*1 |
| Installation | Pole mounted installation |
| Operating Temperature | -۳۰℃～۵۵℃ |
| Storage Temperature | -۴۰ °C to 70 °C |
| Operation Humidity | ۱۰%~۹۰%，non condensing |
| Storage Humidity | ۵%~۹۵%，non condensing |
| Frequency Range | 5G: UNII-1: 5.15~5.35GHzUNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
| Channel Distribution | ۳۶、۴۰、۴۴、۴۸、۵۲、۶۰、۶۴、۱۴۹、۱۵۳、۱۵۷、۱۶۱、۱۶۵ |
| Modulation Mode | ۸۰۲.11a: OFDM (BPSK, QPSK,16-QAM)802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) ۸۰۲.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
| Transmission Speed | 11a maximum 54Mbps, 11n maximum 144Mbps, 11ac maximum 450Mbps |
| Receiving Sensitivity | 11a：≤-۸۶±۱.5dBm @6Mbps，≤-۶۹±۱.5dBm @54Mbps11n 20MHz：≤-۸۵±۱.5dBm@MCS0，≤-۶۷±۱.5dBm @MCS7 11n 40MHz：≤-۸۲±۱.5dBm @MCS0，≤-۶۴±۱.5dBm @MCS7 11ac 20MHz：≤-۸۴±۱.5dBm @MCS0，≤-۵۹±۱.5dBm @MCS8 11ac 40MHz：≤-۸۲±۱.5dBm @MCS0，≤-۵۶±۱.5dBm @MCS9 11ac 80MHz：≤-۷۸±۱.5dBm @MCS0，≤-۵۲±۱.5dBm @MCS9 |
| Transmission Power | 11a: 17dBm±۱.5dBm@54Mbps11n(20/40MHz): 15dBm±۱.5dBm@MCS7 11ac(40/80MHz): 14dBm±۱.5dBm@MCS9 |
| Transmission Distance | 1km |
| Software Features & Performance | |
| Working Mode | Bridge access point, bridge client |
| Networking Method | Point to point, point to many points (within eight points) |
| Management Style | Chinese and English WEB management |
| State | System status, bridge status, interface status |
| Bridge Configuration | Wireless mode: Bridge access point/Bridge clientBridge access point: bridging SSID, bridging password, wireless protocol, wireless bandwidth, wireless channel, wireless power Bridge client: bridging SSID, encryption method, bridging password, peer MAC address, wireless channel, wireless power |
| Network Settings | Address acquisition method: automatic acquisition/static IPIP address, subnet mask, gateway, DNS1, DNS2 |
| System Management | System debugging, password modification, restart/reset/upgrade |
