توضیحات

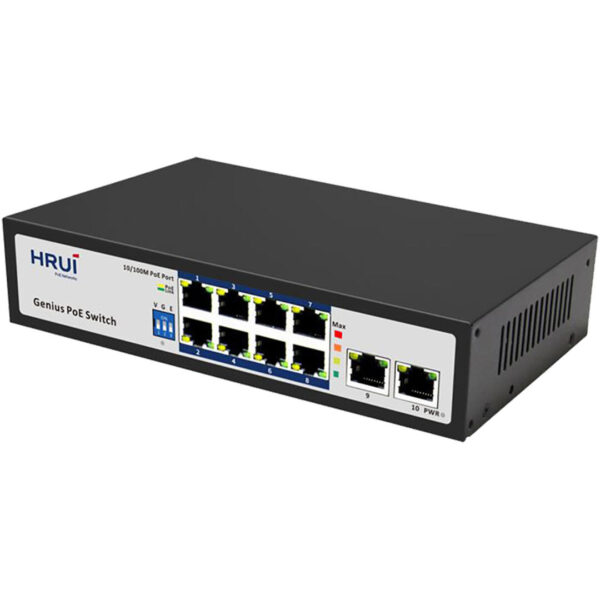

سوئیچ شبکه PoE دارای ۸ پورت و ۲ پورت آپلینک ۱۰/۱۰۰
دارای پهنای باند Gbps۲
Extend Rack mount
قالیت اتصال به رک شبکه
قابلیت WatchDog
این قابلیت در سیستمهای نظارت تصویری در صورت قطع هریک از دوربینها سیستم را ریست کرده تا دوربین دوباره متصل شود.
VLan
Lightning Protection
حفاظت در مقابل جریان الکتریکی شدید مثل رعد و برق
| Specification | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 8 Port 10/100M PoE + 2 Port 100M Ethernet Uplink |
| Performance | |
| Switching Capacity | 2Gbps |
| Forwarding Rate | 1.488Mpps |
| Packet Buffer | 448K |
| MAC Address | 1K |
| Jumbo Frame | 2048bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hours |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) | |
| Network Medium | 10BASE-T: Cat 3、4、5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or above UTP (≤100 meter) | |
| 1000Base-TX : Cat5 or above UTP(≤100 meter) | |
| Protection | |
| Certificate | CE、FCC、RoHS |
| Environment4 | |
| Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage height: Maximum 10,000 feet | |
| Physical Features | |
| Dimension | Product Dimension (L*W*H): 200mm*118mm*44mm |
| Package Dimension (L*W*H): 245mm*190mm*60mm | |
| N.W: 0.7kg | |
| G.W:1 .0kg | |
| Packing Info | Carton MEAS: 505*320*402mm |
| Packing Qty: 20 units | |
| Packing Weight: 21KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Power supply: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
| Indicators | |
| DIP Switch | VLAN: Port Isolation, 1-8 port is isolated each other, but all can communicate with uplink port 9-10, AI enable |
| Genius PoE: Enable the PoE Watchdog and port Priority(Priority (port1>port2>port3>port4..), the port at the front of the sequence is first powered by PoE and data transmit | |
| Extend: Extend Mode, support 250 meters transmission on 10Mbps | |
| LEDs | PWR(power supply) , Green(Link&Data) , Yellow(PoE/1000M) , Power Display , DIP |
