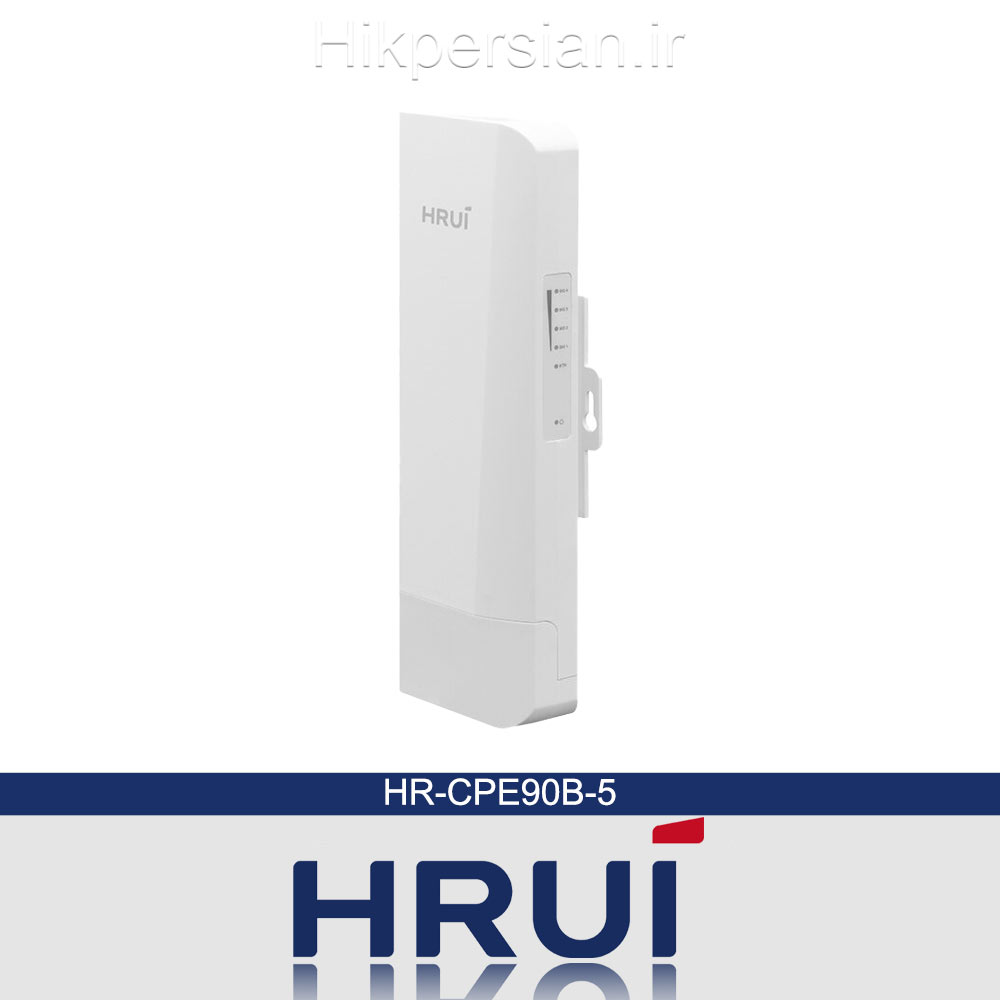

رادیو وایرلس HRUi مدل HR-CPE90B-5
| Hardware Features & Performance | |
| Model | HR-CPE90B-5 |
| Wireless Technology | ۸۰۲.11a/n/ac 900Mbps 2T2R technology |
| Interface | WAN/LAN * 1 10/100/1000Mbps adaptive network portDC power interface, suitable for connecting power plugs with an outer diameter of 5.5mm and an inner diameter of 2.1mm and a length of 9.5mm or more |
| Button | Reset to factory/digital composite button, short press to adjust digital tube value, long press for 6 seconds to restore factory settings |
| Indicator Light | PWR power indicator light, ETH network port status indicator lightSIG1/SIG2/SIG3/SIG4 signal strength indicator light, digital tube |
| Antenna | Built in dual polarization 14dBi directional plate antenna (horizontal lobe angle 60 °, vertical lobe angle 60 °) |
| Power supply | 24V/1A PoE remote power supplyDC 12V/1A, external positive and internal negative |
| Structure Information | Product Dimensions :258*90*56.4mmPackaging Dimensions :280*96*96mm Product Net Weight:0.35kg Product Gross Weight:0.7kg |
| Packing Information | Carton Dimensions :522*298*410mmPacking Quantity: 20PCS Packing Weight: 15kg |
| Package Contents | Wireless Digital Bridge * 1, 24V PoE power adapter * 1, plastic clamp * 2, Ethernet cable * 1, manual (including warranty card)*1 |
| Installation | Pole mounted installation |
| Operating Temperature | -۳۰℃～۵۵℃ |
| Storage Temperature | -۴۰ °C to 70 °C |
| Operation Humidity | ۱۰%~۹۰%，non condensing |
| Storage Humidity | ۵%~۹۵%，non condensing |
| Frequency Range | 5G: UNII-1: 5.15~5.35GHzUNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
| Channel Distribution | ۳۶、۴۰、۴۴、۴۸、۵۲、۶۰、۶۴、۱۴۹、۱۵۳、۱۵۷、۱۶۱、۱۶۵ |
| Modulation Mode | ۸۰۲.11a: OFDM (BPSK, QPSK,16-QAM)802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) ۸۰۲.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
| Transmission Speed | 11a maximum 54Mbps, 11n maximum 300Mbps,11ac maximum 900Mbps |
| Receiving Sensitivity | 11a：≤-۸۶±۱.5dBm @6Mbps，≤-۶۹±۱.5dBm @54Mbps11n 20MHz：≤-۸۵±۱.5dBm@MCS0，≤-۶۷±۱.5dBm @MCS7 11n 40MHz：≤-۸۲±۱.5dBm @MCS0，≤-۶۴±۱.5dBm @MCS7 11ac 20MHz：≤-۸۴±۱.5dBm @MCS0，≤-۵۹±۱.5dBm @MCS8 11ac 40MHz：≤-۸۲±۱.5dBm @MCS0，≤-۵۶±۱.5dBm @MCS9 11ac 80MHz：≤-۷۸±۱.5dBm @MCS0，≤-۵۲±۱.5dBm @MCS9 |
| Transmission Power | 11a: 23dBm±۱.5dBm@54Mbps11n(20/40MHz): 23dBm±۱.5dBm@MCS7 11ac(40/80MHz): 23dBm±۱.5dBm@MCS9 |
| Transmission Distance | 5km |
| Software Features & Performance | |
| Working Mode | Bridge access point, bridge client |
| Networking Method | Point to point, point to many points (within eight points) |
| Management Style | Chinese and English WEB management |
| State | System status, bridge status, interface status |
| Bridge Configuration | Wireless mode: Bridge access point/Bridge clientBridge access point: bridging SSID, bridging password, wireless protocol, wireless bandwidth, wireless channel, wireless power, terminal restrictions Bridge client: bridging SSID [scan], encryption method, bridging password, peer MAC address, wireless channel, wireless power WiFi settings: WiFi switch, hidden WiFi, WiFi name, encryption method, WiFi password Advanced settings: RTS/CTS threshold, Beacon cycle, sharding threshold |
| Network Settings | Address acquisition method: automatic acquisition/static IPIP address, subnet mask, gateway, DNS1, DNS2 |
| System Management | Device properties, password modification, system maintenance (restoring factory configuration/downloading backup configuration/uploading recovery configuration/local upgrade), restart |
| Settings Wizard | Wireless Configuration – Network Configuration – Complete |
| Log | Export/Refresh |
