Description

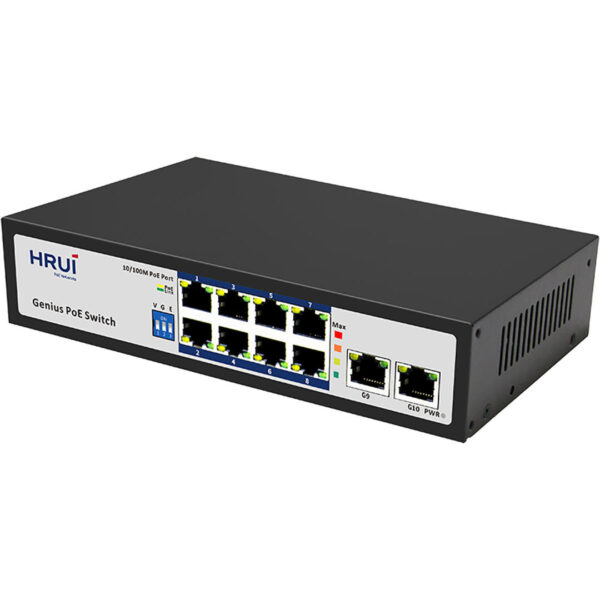

سوئیچ شبکه PoE دارای ۸ پورت ۱۰/۱۰۰ و ۲ پورت آپلینک گیگ
دارای پهنای باند ۵,۶Gbps
Extend Rack mount
قالیت اتصال به رک شبکه
قابلیت WatchDog
این قابلیت در سیستمهای نظارت تصویری در صورت قطع هریک از دوربینها سیستم را ریست کرده تا دوربین دوباره متصل شود.
VLan
۸۰۰Meters Long Distance
Specification | |
I/O Interface | |
Power | Input: AC 100-240V, ۵۰/۶۰Hz |
Ethernet | ۸*۱۰/۱۰۰M PoE Ports + 2*1000M Ethernet Uplink Ports |
Performance | |
Switching Capacity | ۵.۶Gbps |
Forwarding Rate | ۴.۱۶۶Mpps |
Packet Buffer | ۷۶۸K |
MAC Address | ۲K |
Jumbo Frame | ۱۶۳۸۳bytes |
Transfer Mode | Store and forward |
MTBF | ۱۰۰۰۰۰ hours |
Standard | |
Network protocol | IEEE802.3 |
IEEE802.3u | |
IEEE802.3ab | |
IEEE802.3x | |
PoE Protocol | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
EMS: EN61000-4-2 (ESD) | |
EN61000-4-4 (EFT) | |
EN61000-4-5 (Surge) | |
Network Medium | ۱۰BASE-T: Cat 3, ۴, ۵ UTP(≤۱۰۰ meter) |
۱۰۰BASE-TX: Cat5 or more UTP (≤۱۰۰ meter) | |
۱۰۰۰Base-TX: Cat5 or more UTP/STP(≤۱۰۰ meter) | |
Protection | |
Certificate | CE, FCC, RoHS |
Environment4 | |
Environment | Working Temperature: -10~50°C |
Storage Temperature: -40~85°C | |
Working Humidity: 10%~90%, non-condensing | |
Storage Temperature: 5%~90%, non-condensing | |
Working Height: Maximum10, 000 feet | |
Storage height: Maximum 10, 000 feet | |
Physical Features | |
Dimension | Product Dimension (L*W*H): 200mm*118mm*44mm |
Package Dimension (L*W*H): 245mm*190mm*60mm | |
N.W: 0.7kg | |
G.W: 1.0kg | |
Packing Info | Carton MEAS: 505*320*402mm |
Packing Qty: 20 units | |
Packing Weight: 21KG | |
Power Voltage | Input Voltage: AC 100-240 V |
Power supply: 52V2.3A | |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification1 pc |
Indicators | |
DIP Switch | VLAN: Port Isolation, ۱-۸ port is isolated each other, but all can communicate with uplink port 9/10, AI enable; |
Genius PoE: Enable the PoE Watchdog and port Priority(Priority (port1>port2>port3>port4..), the port at the front of the sequence is first powered by POE and data transmit; | |
Extend: Extend Mode, support 800 meters transmission on 10Mbps (need to match the long-distance Ethernet extender, or support long distance camera, 100 m mode of 500 meters, 10 m mode to 800 meters) | |
LEDs | PWR(power supply), Green(Link&Data), Yellow(PoE/1000M), Power Display |
