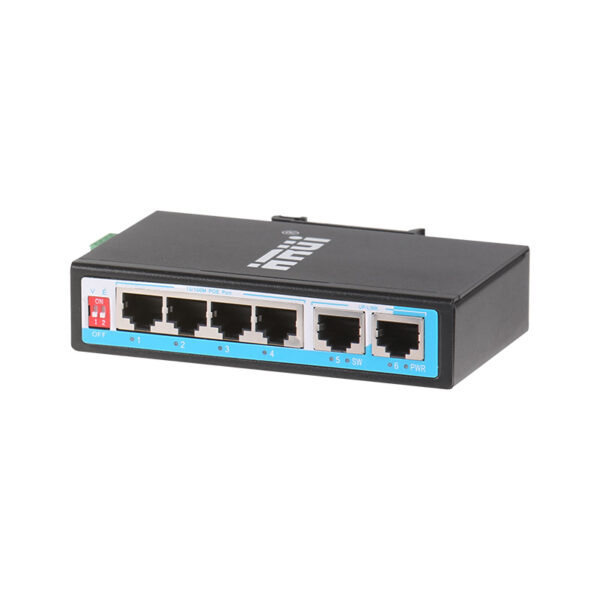

سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AF-42
سوئیچ شبکه PoE صنعتی دارای ۴ پورت و ۲پورت آپلینک ۱۰/۱۰۰
دارای پهنای باند ۱,۶Gbps
Extend
VLan
Din-Rail
۴۰- تا ۷۵+ درجه سانتی گراد
| General parameter | |||||
| Product name | ۶ ports 10M/100M Industrial intelligence standard POE Switch | ||||
| Model | HR500-AF-42 | ||||
| Connector Type | ۴*۱۰/۱۰۰M POE ports +2* 10/100M Uplink Ethernet port | ||||
| Network Protocols | IEEE802.3IEEE802.3u IEEE802.3x | ||||
| POE Parameters | POE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) | ||||
| Each port Max：۱۵.۴ W (IEEE 802.3af)Each port Max：۳۰ W (IEEE 802.3at) | |||||
| POE compatibility：IEEE 802.3af/at adaptive | |||||
| POE port output： DC 52V | |||||
| POE power supply core：۱/۲+ ; ۳/۶- | |||||
| Network Media | ۱۰BASE-T: Cat3,4,5 UTP(≤۱۰۰ m)10BASE-T：Cat6 or more UTP(≤۲۵۰ m) ۱۰۰BASE-TX: Cat5 or more UTP(≤۱۰۰ m) | ||||
| LED indicator | PWR(Power supply indicator Red ) | Lighting：PoweredUn-Light：No Power | |||
| SW(DIP indicator Green) | ۱ | ۲ | Indicate | Mode | |
| off | off | No light | Standard swapping | ||
| on | off | Lighting | VLAN | ||
| off | on | Slow flash | Extend | ||
| on | on | Quick flash | VLAN+Extend | ||
| ۱-۶(Green) | Lighting：ConnectingFlashing：Data Transmit Un-Light：Disconnect | ||||
| DIP | V（VLAN）: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. | ||||
| OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed | |||||
| E（Extend）: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on; | |||||
| Power Supply | Power input: DC48～۵۵Vpower supply wiring: 4 PIN terminal block （redundancy V1+V1-,V2+V2-） | ||||
| Working Environment | Operating Temperature: -40～۷۵℃Storage Temperature: -40～۸۵℃ Humidity: 5%~95 %( non-condensing) | ||||
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) | ||||
| Mechanical Structure | Shell protect grade: IP40Installation: DIN rail N.W：۰.۴۰۹KG G.W: 0.489KG（without power supply） Product Dimension (L×W×H): 119MM*87MM*28MM Package Dimension(L×W×H): 175MM*130MM*55MM | ||||
| Certification | CE , FCC , ROHS | ||||
| Package Contents | Industrial Switch： ۱ unitUser Guide：۱unit Certificate warranty card：۱unit | ||||
| MTBF | ۱۰۰,۰۰۰ hours | ||||
| Warranty | ۵ years | ||||
| Hardware parameter | |||||
| Bandwidth | ۱.۶Gbps | ||||
| Cache | ۵۱۲K | ||||
| Chipset | RTL8309NI | ||||
| Package Forwarding Rate | ۰.۸۹۲۸Mpps | ||||
| MAC address | ۲K | ||||
| Forwarding mode | Store-and-forward | ||||
