توضیحات

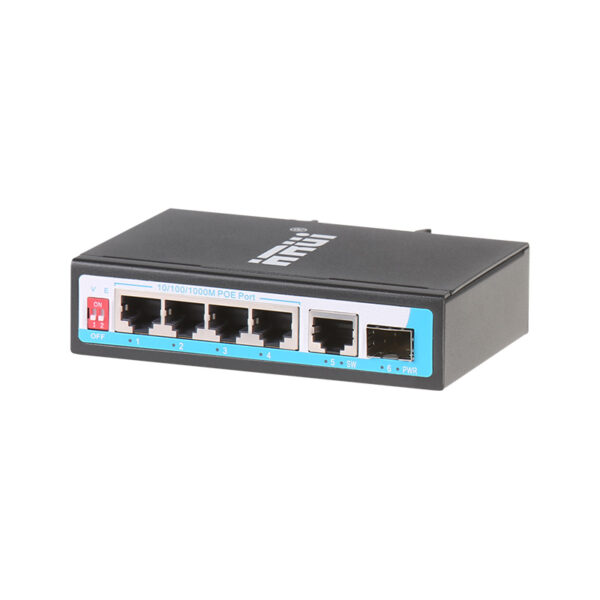

سوئیچ PoE صنعتی گیگ اچ ار یو ای HRUI HR500-AFG-411S
سوئیچ شبکه PoE صنعتی دارای ۴ پورت و ۱ پورت آپلینک و ۱ پورت SFP گیگ
دارای پهنای باند ۱۲Gbps
Extend
VLan
Din-Rail
۴۰- تا ۷۵+ درجه سانتی گراد
| Specification | |
| I/O Interface | |
| Power | DC 48～۵۵V |
| Ethernet | ۴* Gigabit PoE Ports1* Gigabit Uplink port ۱* Gigabit SFP Port |
| Performance | |
| Bandwidth | ۱۲Gbps |
| Pack forwarding rate | ۸.۹۲۸Mpps |
| MAC address | ۸K |
| Jumbo frame | ۹.۶Kbytes |
| Transfer mode | Storage & forward |
| MTBF | ۱۰۰۰۰۰ Hours |
| Standards | |
| Network protocol | IEEE802.3IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
| PoE standard | PoE standard: IEEE802.3af /IEEE802.3atSingle port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at self-adaptive PoE port output voltage: DC 48-55V PoE power supply wire core:1/2+ ; 3/6- |
| Indsutry standard | EMI: FCC Part 15, CISPR (EN55022) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Network Medium | ۱۰BASE-T: Cat3, 4, 5 UTP (≤۱۰۰ m)100BASE-TX: Cat5 or above UTP (≤۱۰۰ m) ۱۰۰۰BASE-TX: Cat5 or above UTP (≤۱۰۰ m) |
| Optical medium | Multimode fiber: 850nm, 1310nm transmission distance: 550m/2KmSingle-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km |
| Certificate | |
| Safety certificate | CE, FCC, RoHS |
| Environment standard | |
| Workin environment | Working temperature: -40～۷۵℃Storage temperature: -40～۸۵℃ Humidity: 5%~95 % (non-condensing) |
| Physical specification | |
| Structure size | Product dimension: 120*87*30 mmPackage dimension: 175*130*55mm Product N.W: 0.441 KG Product G.W: 0.530 KG (without power) |
| Packaging info | Carton MEAS: 540*290*375mmPacking Qty: 40 PCS Packing Weight: 22.2 KG |
| Power voltage | Voltage input: DC48～۵۵VPower cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
| Packaging List | ۱. Industrial Switch: 1 PC2. User Manual: 1 PC ۳. Certification: 1 PC ۴. Pull-arm: 1 PC |
| Indicator | |
| LED Indicator | PWR, 1-6 green light |
| PWR | On: Powered onOff: Powered off |
| ۱-۶ green light | On: Link normalOff: Link off Flashing: Link data transmitting |
| DIP function | V, G, E (Up open, down close) |
| V | V: VLAN mode, ports 1 to 4 are isolated and can communicate with ports 5 and 6 |
| G | G: Normal mode |
| E | E: Extend mode, ports 1-4 are reduced to 10M and can be extended to 250m |
