توضیحات

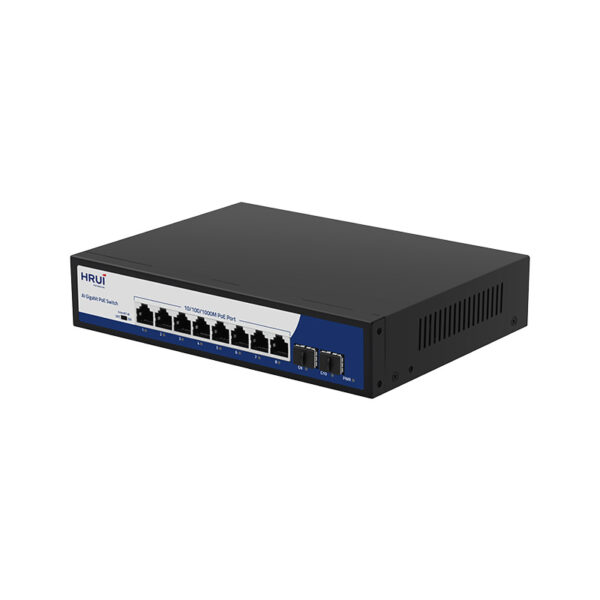

سوئیچ شبکه PoE دارای ۸ پورت و ۲ پورت SFP گیگ
دارای پهنای باند ۲۰Gbps
SFP
Extend – Port7,8
WatchDog
Rack mount
| Specification | |
| I/O Interface | |
| Power | AC INPUT (100-240 V) |
| Ethernet | ۸* Gigabit PoE Ports2* Gigabit SFP Ports |
| Chipset | ۲*RTL8367SRTL8238B |
| Performance | |
| Bandwidth | ۲۰Gbps |
| Packet Forward Rate | ۱۴.۸۸Mpps |
| Package Cache | ۴۴۸Kbit |
| MAC Address | ۲K |
| Jumbo Frame | ۹۲۱۶bytes |
| Forwarding Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ Hours |
| Standard | |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Standard | IEEE802.3af (۱۵.۴W)IEEE802.3at (30W) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge) |
| Network medium | ۱۰Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ ۱۰۰m)100Base-TX: Cat 5 Class or above UTP/STP (≤ ۱۰۰m) ۱۰۰۰Base-TX: Cat 5 Class or above UTP/STP (≤ ۱۰۰m) |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Certification | |
| Safety Certificate | CCC/CE/FCC/UL/ROHS |
| Environment Standard | |
| Working Environment | Working temperature: -10~50°CStorage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
| Physical Specification | |
| Structure Size | Product Dimensions: 220*161*44mmPackage Dimensions: 315*215*85mm Product N.W: 0.88kg Product G.W: 1.38kg |
| Packing Info | Carton Dimensions: 445*445*335mmPacking Quantity: 10 PCS Packing Weight: 14.8KG |
| Power Voltage | Input Voltage: AC 100-240 V 50-60HzSupply Power: 52V2.3A |
| Power Consumption | Product power: ≤ ۱۰WPOE power: ≤ ۱۱۰W |
| Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
| Indicator | |
| LED Indicator | PWR (Power)，۱-۱۰ Green Light (Link&Data) |
| PWR | On: Powered onOff: Powered off |
| ۱-۱۰ Green Light (Link&Data) | On: Link normalOff: Link blocked Flashing: Data transmitting |
| DIP Switch | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabledExtend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog) |
