Description

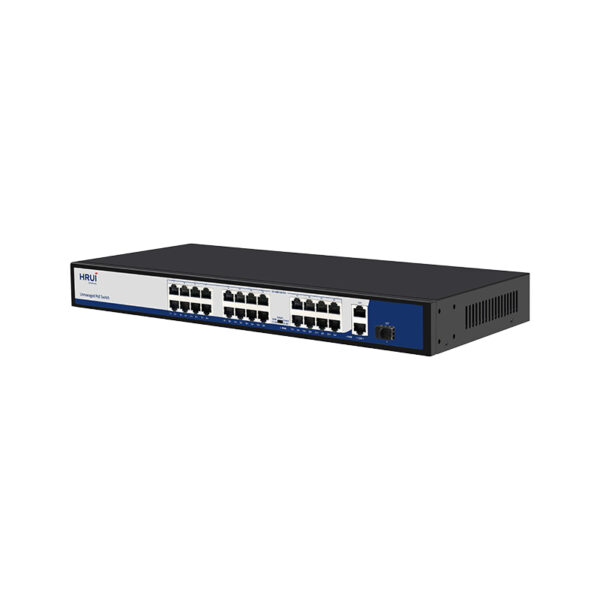

سوئیچ شبکه PoE دارای ۲۴ پورت ۱۰۰/۱۰ و ۲ پورت آپلینک
و ۱ پورت SFP گیگ
دارای پهنای باند ۱۰,۸Gbps
VLan
SFP
Extend
Rack mount
| Specification | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | ۲۴ Port 10/100M PoE + 2 Port 1000M Ethernet Uplink+1 Port 1000M SFP |
| Performance | |
| Power Budget | ۵۲V 7.69A 400Watt |
| Switching Capacity | ۱۰.۸Gbps |
| Forwarding Rate | ۸.۰۳۵Mpps |
| Packet Buffer | ۱.۵Mb |
| MAC Address | ۲K |
| Jumbo Frame | ۹۲۱۶bytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hours |
| Standard | |
| Network protocol | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3ab |
| PoE Protocol | IEEE802.3af (۱۵.۴W) |
| IEEE802.3at (۳۰W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | ۱۰BASE-T: Cat 3, 4, 5 UTP(≤۱۰۰ meter) |
| ۱۰۰BASE-TX: Cat5 or more UTP (≤۱۰۰ meter) | |
| ۱۰۰۰Base-TX: Cat5 or more UTP/STP(≤۱۰۰ meter) | |
| Optical Media | Multimode fiber: 50/125, 62.5/125, 100/140um |
| Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um | |
| Protection | |
| Certificate | CE, FCC, RoHS |
| Environment | |
| Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage height: Maximum 10,000 feet | |
| Physical Features | |
| Dimension | Product Dimension (L*W*H): 440*205*44mm |
| Package Dimension (L*W*H): 500*290*85mm | |
| N.W: 2.2kg | |
| G.W: 2.5kg | |
| Packing Info | Carton MEAS: 520*445*315mm |
| Packing Qty: 5 units | |
| Packing Weight: 14.5KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Power supply: 52V7.69A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
| Indicators | |
| DIP Switch | VLAN : Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port |
| OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive | |
| Extend : Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M | |
| LEDs | PWR(power supply)，SW(DIP)，۱-۲۷(Link&Data) |
