توضیحات

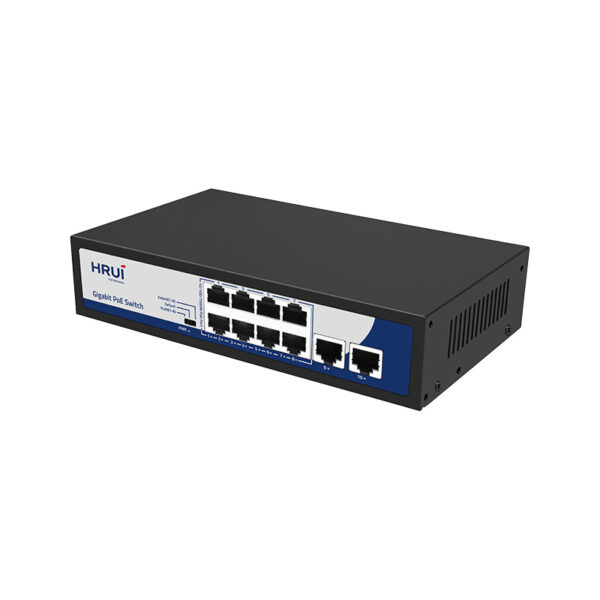

سوئیچ شبکه PoE دارای ۸ پورت و ۲ پورت آپلینک گیگ
دارای پهنای باند Gbps۲۰
VLan
Rack mount
Lightning Protection
Extend – Port7,8
| Specification | |
| I/O Interface | |
| Power | AC 100-240V 50/60Hz |
| Ethernet | ۸ Port 10/100/1000M PoE |
| ۲ Port 1000M RJ45 Uplink | |
| Performance | |
| Switching Capacity | 20Gbps |
| Throughput | ۱۴.88Mpps |
| Packet Buffer | ۱.5Mbit |
| MAC Address | 2K |
| Jumbo Frame | 9216Kbytes |
| Transfer Mode | Store and forward |
| MTBF | ۱۰۰۰۰۰ hour |
| Standard | |
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10Base-T: Cat3, ۴, ۵ or above UTP(≤100m) |
| 100Base-TX : Cat5 or above UTP(≤100m) | |
| 1000Base-TX: Cat5 or above UTP(≤100m) | |
| Protection | |
| Security Certificae | CE, FCC, RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity : 10%~90%, non-condensing | |
| Storage Temperature: 5%~90%, non-condensing | |
| Working Height: Maximum10, 000 feet | |
| Storage heigh: Maximum 10, 000 feet | |
| Indication | |
| LED Indicators | PWR(power supply), 1-10 Green(Link&Data) |
| Mechanical | |
| Structure Size | Product Dimension (L*W*H): ۲۲۰*۱۶۱*۳۶.5mmm |
| Package Dimension (L*W*H): ۳۰۳*۱۹۰*60mm | |
| N.W: 0.9kg | |
| G.W: 1.2kg | |
| Packing Info | Carton MEAS: 620*320*402mm |
| Packing Qty: 20 units | |
| Packing Weight: 25KG | |
| Power Voltage | Power Input Voltage : AC 100-240 V |
| Power supply: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
