توضیحات

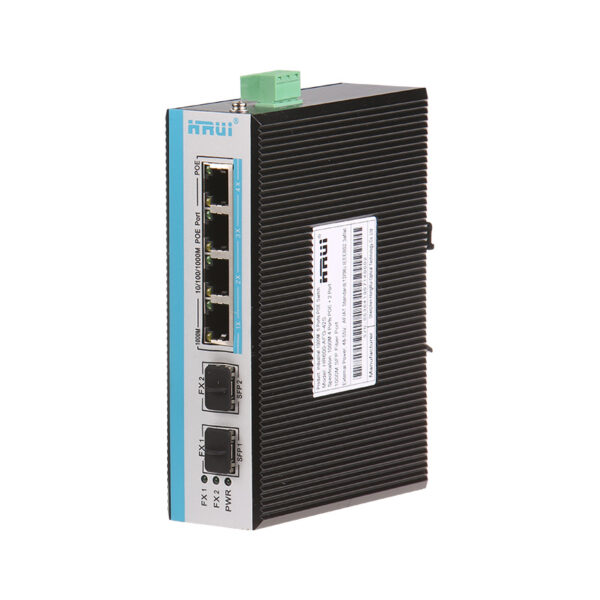

سوئیچ PoE صنعتی گیگ اچ ار یو ای HRUI HR600-AFG-42S
سوئیچ شبکه PoE صنعتی دارای ۴ پورت و ۲ پورت SFP گیگ دارای پهنای باند ۱۲Gbps
Din-Rail
۴۰- تا ۸۵+ درجه سانتی گراد
| General parameter | ||
| Product name | 6 ports Gigabit Industrial POE Switch | |
| Model | HR600-AFG-42S | |
| Connector Type | 4*gigabit POE Ports+2*gigabit SFP ports | |
| Network Protocols | IEEE802.3IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z | |
| POE Parameters | POE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) | |
| Each port Max：15.4 W (IEEE 802.3af)Each port Max：30 W (IEEE 802.3at) | ||
| POE compatibility：IEEE 802.3af/at adaptive | ||
| POE port output： DC 52V | ||
| POE power supply core：1/2+ ; 3/6- | ||
| Network Media | 10BASE-T: Cat5 UTP(≤100 m)100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) | |
| Fiber Media | Multi-mode：850nm，1310nm transmission distance：550m/2KmSingle-mode：1310nm，1550nm transmission distance：20/40/60/80/100/120Km | |
| LED indicator | PWR | Lighting：PoweredUn-Light：No Power |
| Port Yellow | Lighting：1000M connectingUn-Light：10M/100M connecting | |
| Port Green | Lighting：ConnectingFlashing：Data Transmit Un-Light：Disconnect | |
| FX1，FX2 | Lighting：Fiber optic connectingUn-Light：Fiber optic disconnecting Quick flash：Data Transmit | |
| Power Supply | Power input: DC52V (48～55V)power supply wiring: 3 PIN terminal block（V+ V- V+） | |
| Working Environment | Operating Temperature: -40～75℃Storage Temperature: -40～85℃ Humidity: 5%~95 %( non-condensing) | |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class AEMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) | |
| Mechanical Structure | Shell protect grade: IP40Installation: DIN rail N.W：0.5 KG G.W:0.77 KG（without power supply） Product Dimension (L×W×H): 145mm× 108mm× 40mm Package Dimension(L×W×H): 250mm× 210mm× 65mm Carton Box Dimension(L×W×H)：608mm× 500 mm× 435mm Packing Quantity：36 (PCS) | |
| Package Contents | Industrial Switch： 1 unitUser Guide：1unit Certificate warranty card：1unit | |
| Certification | CE , FCC , ROHS | |
| MTBF | 100,000 hours | |
| Warranty | 5 years | |
| Hardware parameter | ||
| Bandwidth | 12Gbps | |
| Cache | 1M | |
| Chipset | 88E6161 | |
| Package Forwarding Rate | 8.928Mpps | |
| MAC address | 2K | |
| Forwarding mode | Store-and-forward | |
